            UWB Air-commanding Pen Tag | HY-BI305













    Features
    High integration, deep integration of antenna, RF, UWB, IMU, and algorithm, compliant with IEEE802.15.4z standard
    Serial port/UWB dual-channel data transmission, output distance, angle, attitude, convenient for rapid integration and secondary development
    High precision in distance and angle measurement, accurate pointing posture, 360° all-round positioning, and smooth experience
    Extremely light, USB receiver, plug and play, easy to carry




    Specifications
    Technical specifications
    Parts List

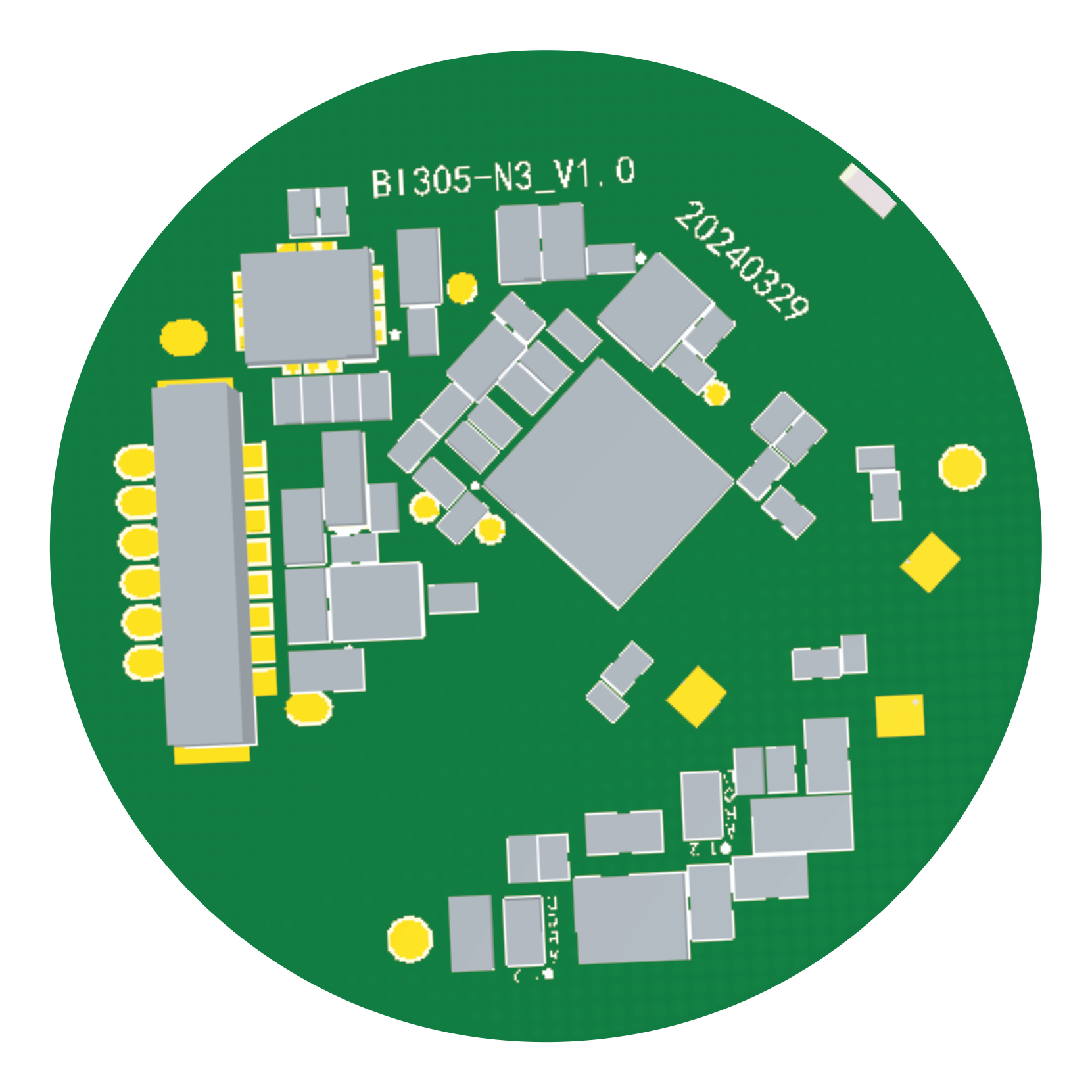

    structure size

    Physical parameters
    Dimensions
    Weight
    Mounting holes
    Interfaces
    Power supply
    LED indicator
    25mm
    6g
    See the structural design diagram
    2 GPIO, UART_TXD, UART_RXD, GND, VDD3V3
    DC 3.3V±5%
    1 red and green dual-color indicator light
    Power consumption parameters
    Average current
    Peak current
    75mA/5V@80Hz
    660mA/5V@80Hz
    Antenna parameters
    UWB antenna type
    Bluetooth antenna type
    Onboard array antenna
    Onboard ceramic antenna
    Performance Parameters
    UWB communication distance
    Angle measurement accuracy
    Distance measurement accuracy
    Measurement frequency
    Communication function
    UWB standard

    100 meters, no interference, no obstruction +0.5°(1) N3
    +2.5°(10) Q3
    +5cm(1o), ranging between two module main antennas
    80Hz(max)
    Support data transparent transmission mode
    IEEE 802.15.4z
    reliability
    Working temperature
    Storage temperature
    Working humidity
    Antistatic level

    -40°C-+75°C
    -40°C~+85°C
    95% (non-condensing)
    IEC61000-4-2 standard level 4






    Applications
    Any device in a smart home, such as air conditioners, lights, and speakers, can be attached with a receiver. When the remote control is aimed at these devices, it can perform various operations such as turning them on and off, adjusting the temperature, and adjusting the brightness, achieving a more intelligent and convenient home experience.
    learn more
    The solution also supports a variety of document operations and one-click annotation and correction functions to meet the needs of various scenarios such as meetings, lectures, and commercial scenarios.
    learn more
    Traditional wireless presenters can only turn pages, but this remote control can not only mark but also switch multimedia. It also supports ultra-long-distance remote control, which can meet the needs of large scenes and improve work efficiency.
    learn more
    This remote control also supports ultra-online teaching, meetings and other scenario requirements, easily realizing intelligent office needs.
    learn more
    Smart Home
    Smart Education
    Commercial Display
    Digital Office
