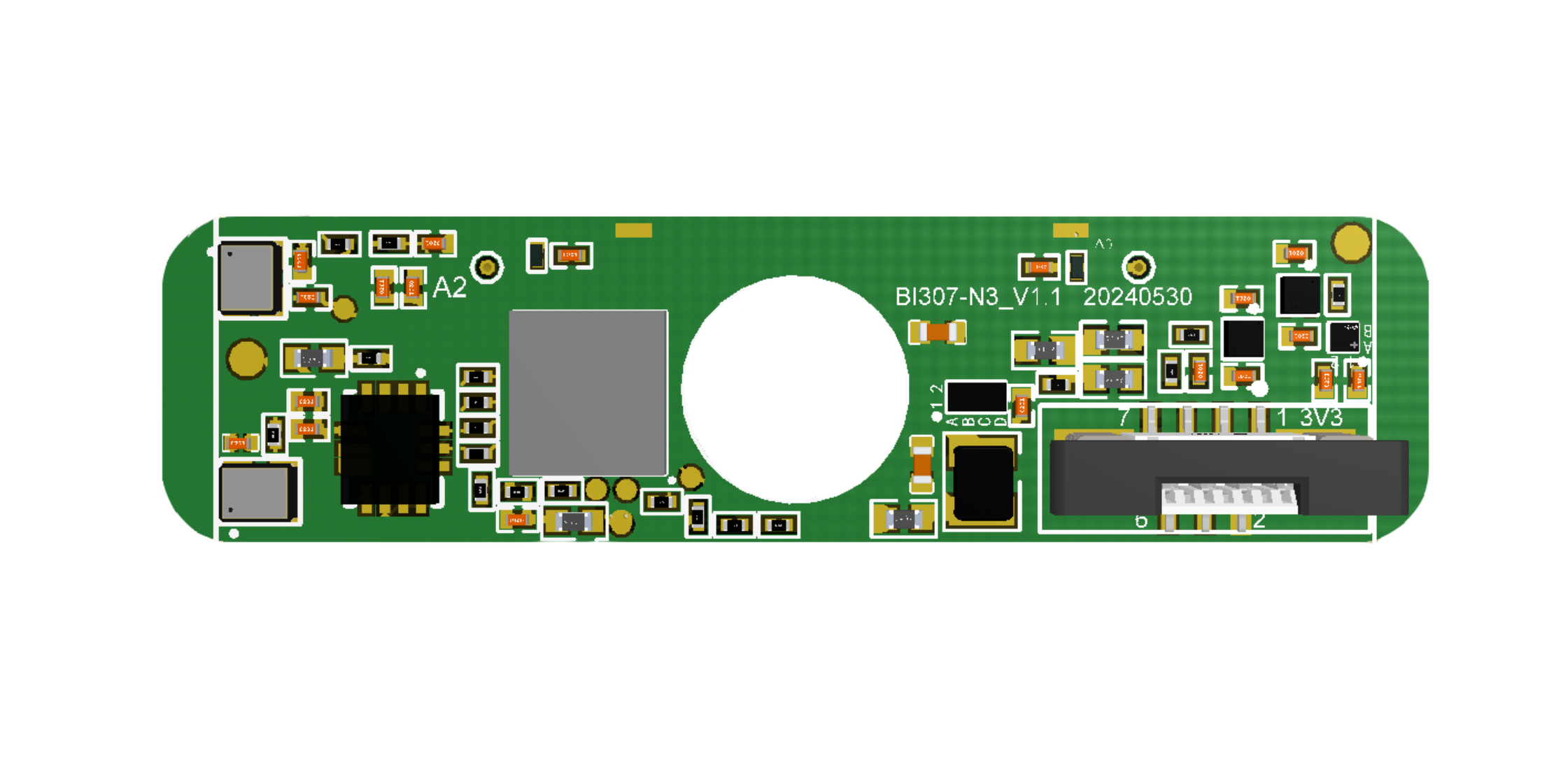

            UWB Air-commanding remote control | HY-BI307-N200-01













    Features
    High integration without antenna and RF design
    Can output accurate point coordinates
    Hardware + software + algorithm intelligent low-power design, improve the battery life
    High ranging and Angle measurement accuracy, accurate pointing attitude, smooth experience





    Technical specifications
    Technical specification
    Parts list
    structure size

    Physical specification
    Structure size
    Pointing function
    Directional positioning technique
    Point to the datagram point
    Absolute direction
    UWB and IMU joint positioning technology
    100 Hz
    Hardware specification
    UWB standard
    CH9
    Output power
    Input voltage
    Working peak current
    Working average current
    Resting current
    802.15.4z
    The center frequency is 7987.2MHz and the bandwidth is 500MHz
    -41.3dBm/MHz (adjustable)
    DC 3.3V(±5%)
     ≦96mA
    ≦19mA
     ≦60uA
    Antenna parameter
    UWB antenna type
    Onboard array antenna
    Performance parameter
    Ranging accuracy
    Angle measurement accuracy
    Communication distance
    Communication function
    ±5cm(1σ), distance between the two module main antennas
    ±1° (1σ)
    20m
    Support data transparent transmission mode (need to customize private protocol)
    Reliability
    Operating temperature
    Storage temperature
    Working humidity
    Antistatic class

    -20℃ ~+60℃
    -40℃ to +85℃
    95% (non-condensing)
    ESD (Human body model) 2000V
    dimension
    weight
    35mm*9mm*6.9mm
    ≤3g





    Applications
    Any device in a smart home, such as air conditioners, lights, and speakers, can be attached with a receiver. When the remote control is aimed at these devices, it can perform various operations such as turning them on and off, adjusting the temperature, and adjusting the brightness, achieving a more intelligent and convenient home experience.
    learn more
    The solution also supports a variety of document operations and one-click annotation and correction functions to meet the needs of various scenarios such as meetings, lectures, and commercial scenarios.
    learn more
    Traditional wireless presenters can only turn pages, but this remote control can not only mark but also switch multimedia. It also supports ultra-long-distance remote control, which can meet the needs of large scenes and improve work efficiency.
    learn more
    This remote control also supports ultra-online teaching, meetings and other scenario requirements, easily realizing intelligent office needs.
    learn more
    Smart Home
    Smart Education
    Commercial Display
    Digital Office
