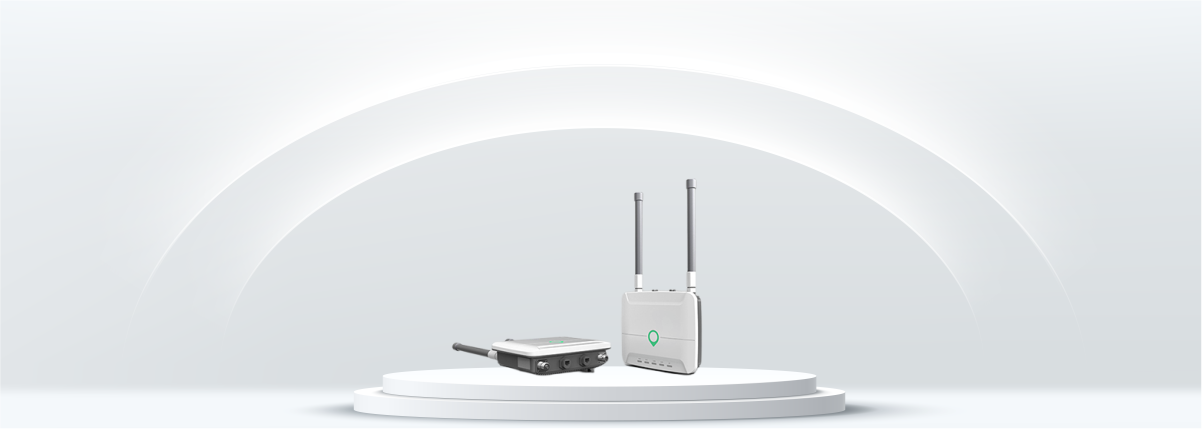

            Ultra-long-range Location Beacon | HY-BI104













    Features
    Support dual-channel UWB positioning/orientation
    UWB positioning module can support frequency division function
    UWB module supports ch2 & ch5 dual frequency operation
    UWB module adopts high power design, with the highest output of -13dbm/MHz




    Specifications
    Technical specifications
    Parts List
    structure size

    Hardware specifications
    UWB standard
    Output power
    Current
    Input voltage
    802.15.4z ch9
    (-13)dBm/MHz (adjustable)
    <=100ma
    3.3V( +- 5%)
    Software Specifications
    Positioning mode
    Communication protocol
    		AOA+TOF
    Antenna parameters
    Positioning frequency
    UWB antenna
    Bluetooth antenna
    0.1~10HZ adjustable
    Can be used with IPEX1 external antenna
    Built-in ceramic antenna
    Reliability
    Working temperature
    Storage stability
    Working humidity
    Antistatic level

    -30℃ ~+75℃
    -40℃ ~+85℃
    95%(Non-condensing)
    無
    Serial numberPin NameFunctionDescribe
    1RES

    Physical specificationssize20mm *20mm*3mm




    Applications
    The digital agriculture management platform can realize accurate dispatch and real-time monitoring of the labor force, improve labor efficiency and management level, and ensure operation safety. The digital agriculture management platform will summarize and analyze the data to make it more intuitive and detailed to understand the overall agricultural production management situation and use this data for macro-control.
    learn more
    The digital agriculture management platform can realize accurate dispatch and real-time monitoring of the labor force, improve labor efficiency and management level, and ensure operation safety. The digital agriculture management platform will summarize and analyze the data to make it more intuitive and detailed to understand the overall agricultural production management situation and use this data for macro-control.
    learn more
    Smart Agriculture
    Smart Agriculture
