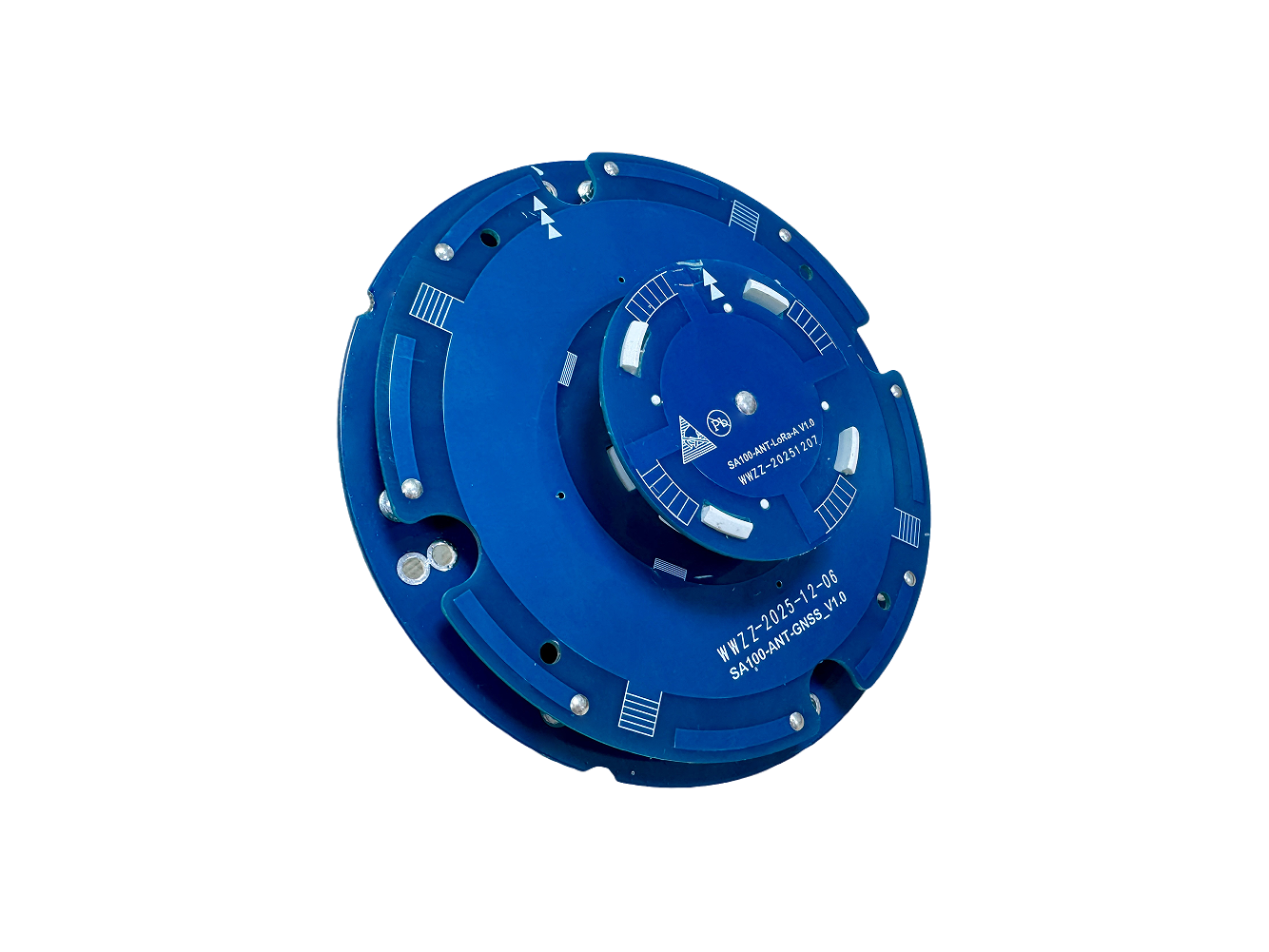

            GNSS Smart Antenna | HY-SA100-9R













    Features
    A full-frequency GNSS antenna with a highly stable phase center
    It integrates a high-performance full-frequency GNSS chip and has narrowband anti-interference capability
    Integrated LoRa chip, supporting custom protocol data transmission
    Support the collaborative function of multiple base stations and multiple mobile stations





    Specification parameters
    Technical specifications
    Accessory list
    Structural dimensions

    Physical parameters
    Size
    Weight
    Color
    Power supply
    LED indicator light
    ≤Φ 120 mm * 35 mm or less
    < 130g
    blue
    5V±5%
    The working indicator light is green
    Power consumption parameter
    Working average current

    Peak working current

    VBAT
    ＜210mA@ (5V & LoRa RX)
    ＜350 mA@ (5V & LoRa TX)
    ＜500mA@ (5V & LoRa RX)
    ＜800mA@ (5V & LoRa TX)
    ＜2mA/5V
    Antenna parametersGNSS


    LoRa
    Phase center: ±2mm
    Maximum gain: 3dBi
    Maximum gain: 0dBi
    Satellite reception performance parametersGNSS satellite reception frequency points
    B1I/B1C/L1CA/E1/G1/QZL1
    B2a/L5/E5a/NavIC/QZL5
    B2I/B2b/E5b/L2/QZL2
    G2/B3I
    E6 HAS/QZL6
    PPP-B2b
    SBAS L1CA
    Positioning performance parametersGNSS positioning
    Horizontal accuracy (1σ) :
    PVT single point: 1.5m
    DGPS differential: 0.4m
    RTK differential: 1cm+1ppm
    Vertical accuracy (1σ) :
    PVT single point: 2.5m
    DGPS differential: 0.8m
    RTK differential: 1.5cm+1ppm
    LoRa performance parameters
    Transmission power
    Frequency
    22dBm(Maximum, adjustable）
    863-870MHz，902-928MHz
    Reliability

    Fall
    Vibration
    Working temperature
    Storage temperature
    Working humidity
    Anti-static grade

     1.0m
    GJB150.16A
    -20℃ ~+60℃
     -40℃ ~+85℃
    95%(Non-coagulation）
    IEC61000-4-2 Standard Level 4




    Application scenarios
    When applied to lawn mowing robots, lawn mowers can achieve stable and continuous lawn mowing work, improving efficiency.
    Learn more
    It is installed on agricultural machinery such as tractors and harvesters to achieve "autonomous driving".
    Learn more
    Robots that provide automatic delivery services in semi-closed environments such as parks and campuses.
    Learn more
    Other scenarios remain to be developed。
    Learn more
    Lawn mowing robot
    Unmanned agricultural machinery
    Delivery robot
    Other scenarios
