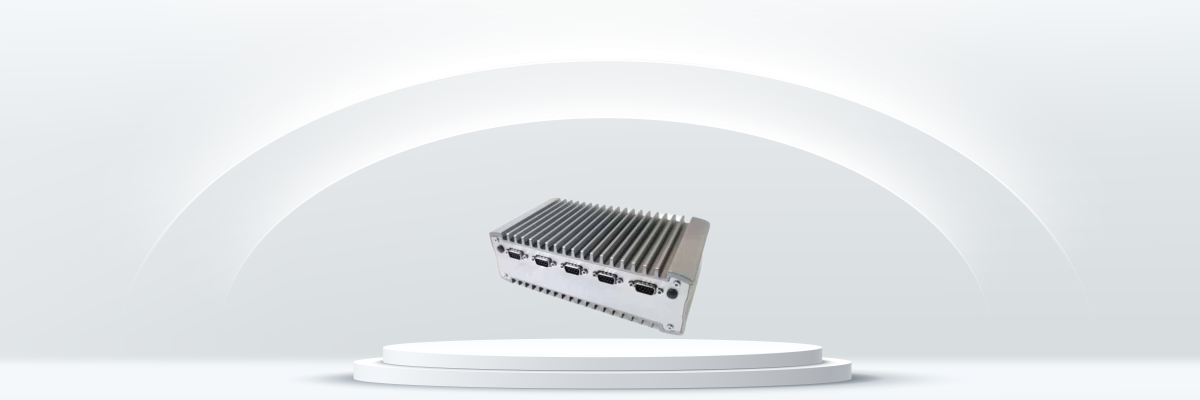

Positioning Engine Server | HY-GI102
| processor | CPU Main frequency Power consumption | Onboard i5-8265U CPU (4C/8T/15W) 1.6GHz up to 3.9GHz 15W |
|---|---|---|
| store | Memory Hard disk | 8G DDR4 Samsung M.2 500G |
| Graphics Engine | Graphics | Intel? UHD Graphics for 8th Generation Intel? Processors |
| Front panel interface | Kushiguchi GPIO Wi-Fi | 4 x COM (COM5 & 6 are not full signal， 1 x GPIO 2 x Wi-Fi interface |
| Rear panel connector | Power switch/indicator Power supply interface Display interface Serial port Ethernet port USB Audio GND | 1 x power switch with power indicator 1 x external power switch and indicator 1 x DC12V power supply 2 x HDMI 2 x COM (COM2 can be set to RS232/422/485 by jumper) 2 x Intel Gigabit LAN ( i211-AT ) 4 x USB2.0 ; 4 x USB3.0 1 x LOUT 1 x shell ground |
| Adapter | Power input Power output | AC 100~240V/1.5A 50/60Hz DC 12V/5A |
| Expansion Slot | M.2 | 1 x M.2 (NGFF) Key-B Slot (3042/3052, PCIE + USB3.0(Premium-U) + USB2.0, support 4G/5G, with1 * SIM Card Header) 1 x M.2 (NGFF) Key-E Slot (PCIE+USB2.0, Wi-Fi+BT, 2230) |
| Name | quantity | √ Standard / × Optional | Remark |
|---|---|---|---|
| Host | 1 | √ | |
| screw | 1 | √ | Expansion screws |
Whip Antenna | 1 | √ | Bendable Wi-Fi Antenna |
| Suction cup antenna | 1 | √ | 4G All Network Antenna |
| Connector | 1 | √ | Including power cord, network port |
| Power Adapter | 1 | √ | AC100~240V input DC16.8V 2A output |
| Physical parameters | size | 220*121.6*70mm |
|---|
