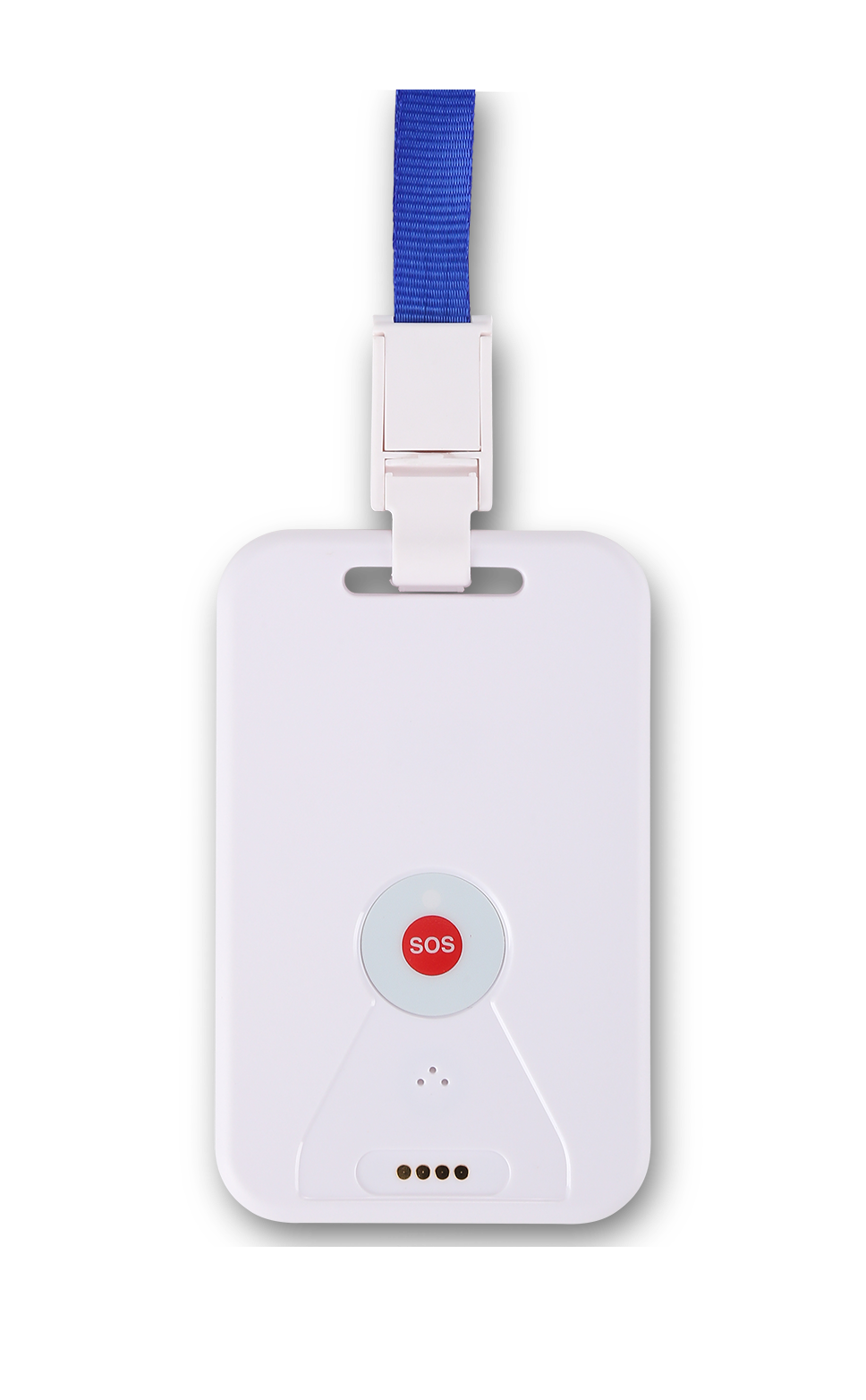

Badge Locator Tag | HY-TC102
Features
Specifications
Applications
Badge Locator Tag | HY-TC102
| Performance Parameters | UWB communication distance Maximum positioning accuracy Positioning frequency Alarm function System tag capacity System tag capacity | ≥200m ＜30cm 0.1Hz ∽ 20Hz adjustable One-touch SOS call and vibration and sound alarm Wireless Wireless |
|---|---|---|
| Electrical parameters | UWB channel Battery operating time | ch2(3.7G-4.3G)/ch5(6.2G-6.8G) Rechargeable battery, 1 month (1Hz), 4 months (0.1Hz) |
| RF parameters | Antenna Type | Internal antenna |
| Environmental parameters | Operating temperature Storage temperature Operating temperature | -20℃ ∽ +75℃ -40℃ ∽ +80℃ 95% (non-condensing) |
| Protection performance | Protection level Fire protection level Anti-static level Vibration | IP68 UL94-V0 IEC61000-4-2 standard level 4 GB/T2423 |
| Name | Quantity | (Yes) Standard /Optional (No) | Remark |
|---|---|---|---|
| Host | 1 | Yes | |
| charger | 1 | Yes | USB magnetic charging cable |
| Physical parameters | Dimensions Weight LED indicator | 92*58*7.5mm ＜90g Battery, working status and alarm indicator lights |
|---|
