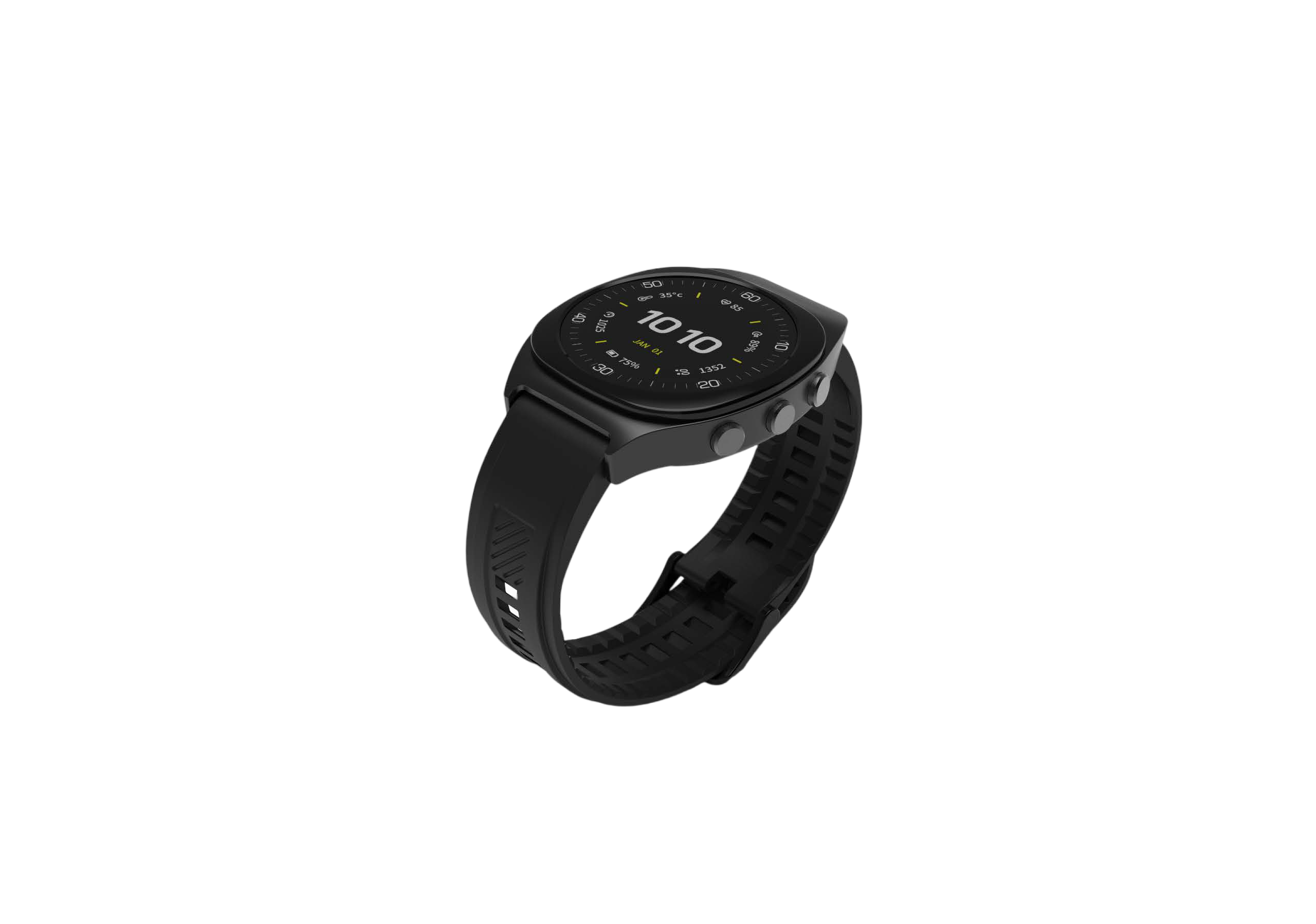

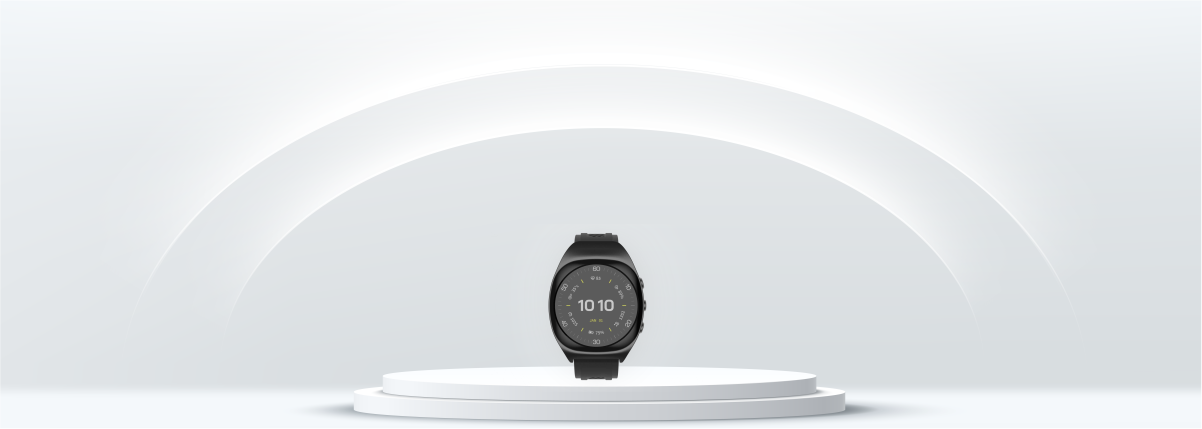

Wristband positioning tag | HY-TW101
| Performance Parameters | UWB communication distance Maximum positioning accuracy Positioning frequency Alarm function System tag capacity System tag capacity | ≥700m ＜30cm 0.1Hz ∽ 20Hz adjustable One-touch SOS call and vibration and sound alarm Wireless Wireless |
|---|---|---|
| Electrical parameters | UWB channel Battery operating time | ch2(3.7G-4.3G)/ch5(6.2G-6.8G) 20 days (1Hz, 24 hours continuous operation) |
| Antenna parameters | UWB antenna type Bluetooth antenna type | Onboard array antenna Onboard ceramic antenna |
| RF parameters | Antenna Type | Internal antenna |
| Environmental parameters | Operating temperature Storage temperature Operating temperature | -20℃ ∽ +75℃ -40℃ ∽ +80℃ 95% (non-condensing) |
| Protection performance | Protection level Fire protection level Anti-static level Vibration | IP68 UL94-V0 IEC61000-4-2 standard level 4 GB/T2423 |
| Name | quantity | (Yes) Standard / Optional (No) | Remark |
|---|---|---|---|
| Host | 1 | Yes | |
| Battery | 1 | Yes | 630mAh |
| screw | 3 | Yes | M2.5*8mm |
| 3MFoam | 1 | Yes | 50*50*5mm |
| drill | 1 | No | When fixing with screws, the helmet punching tool |
| Velcro | 1 | No | Installation method can be Velcro |
| charger | 1 | No | External battery charger |
| Crowbar | 1 | No | This tool can be used to open the battery compartment |
| Physical parameters | Dimensions Weight Mounting holes LED indicator | 62.5*50*15.6mm (without strap) ＜65g 3 pieces Battery, working status and alarm indicator lights |
|---|
