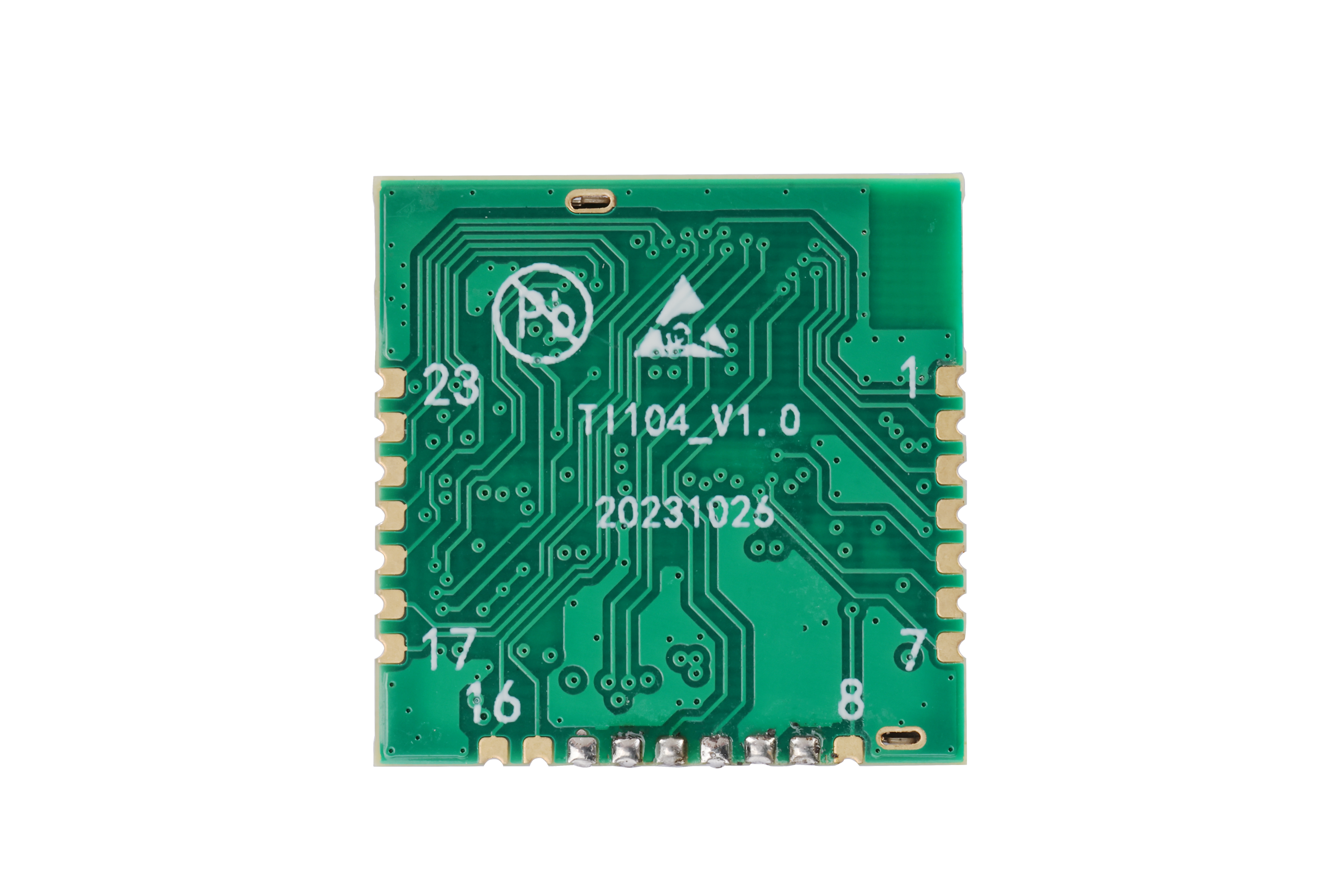

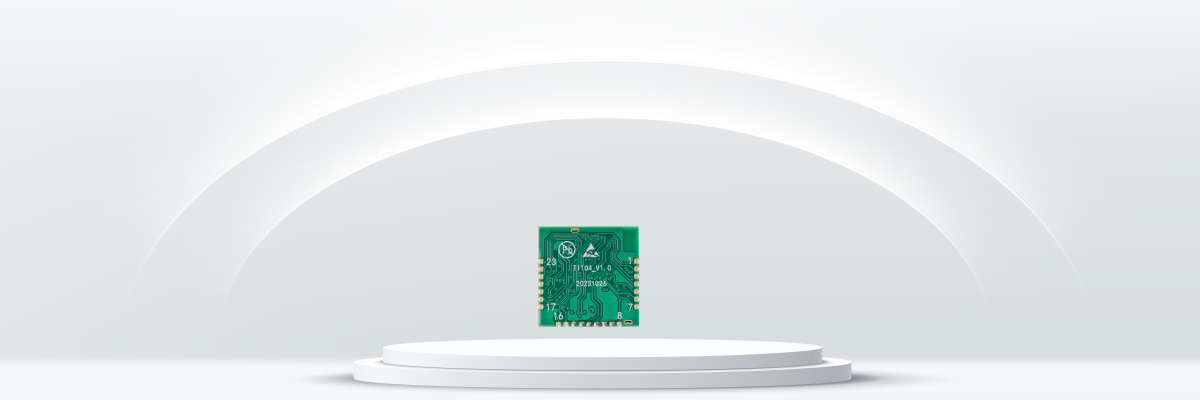

            Positioning Tag | HY-TI104















    Features
    Easy integration, no RF design required
    Compliant with IEEE802.15.4z standard
    Can accurately output distance
    Built-in high-end MCU+UWB chipset




    Specifications
    Technical specifications
    Parts List
    structure size

    Hardware specifications
    UWB standard
    Output power
    Current
    Input voltage
    802.15.4z ch9
    (-13)dBm/MHz (adjustable)
    <=100ma
    3.3V( +- 5%)
    Software Specifications
    Positioning mode
    Communication protocol
    		AOA+TOF
    Antenna parameters
    Positioning frequency
    UWB antenna
    Bluetooth antenna
    0.1~10HZ adjustable
    Can be used with IPEX1 external antenna
    Built-in ceramic antenna
    reliability
    Working temperature
    Storage stability
    Working humidity
    Antistatic level
    -30℃ ~+75℃
    -40℃ ~+85℃
    95% (non-condensing)
    None
    numberPin NameFunctiondescribe
    1RES

    Physical specificationssize20mm *20mm*3mm




    Applications
    The solution realizes the coordination of people and vehicles, and the collaborative positioning of vehicles and vehicles, improves production efficiency, reduces costs, improves product quality, and provides strong support for the sustainable development of enterprises.
    learn more
    Through the cooperation and cooperation between UWB technology, systems or equipment, it is a solution to realize human-vehicle collaboration, vehicle-vehicle collaborative positioning work, and jointly complete specific tasks or achieve specific goals.
    learn more
    By leveraging UWB's high-precision positioning characteristics, asset management can become more efficient, precise and secure.
    learn more
    Any device in a smart home, such as air conditioners, lights, speakers, etc., can be attached with a receiver. When the remote control is aimed at these devices, it can perform various operations such as turning on and off, adjusting temperature, adjusting brightness, etc., to achieve a more intelligent and convenient home experience.
    learn more
    Smart follow
    Collaborative scene
    Asset Management
    Smart home
